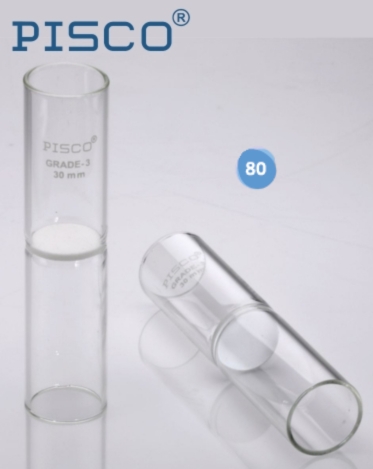

PISCO® Sintered Glass Filter Tubes with centrally sealed sintered discs are precision-engineered laboratory components manufactured from high-quality low expansion borosilicate glass. These tubes feature a porous sintered glass disc fused in the center, allowing for versatile use in gas dispersion, filtration, and washing applications.
The central placement of the disc ensures efficient filtration or diffusion across two chambers, making them ideal for use in absorption towers, washing bottles, and gas-liquid separation units. The sintered disc is available in a variety of porosity grades (G-0 to G-4) to suit specific laboratory or industrial needs. With outstanding resistance to thermal stress and chemical corrosion, PISCO® filter tubes are durable, reusable, and compliant with ASTM, ISO, and B.S. standards.
| Porosity Grade | Pore Size Approx. (in microns) | Principal Uses |
|---|---|---|
| 00 | 250+ | Very coarse filtration, ideal for high viscous liquids. |
| 0 | 150–250 | Coarse filtration, gas dispersion & support for other filter materials. |
| 1 | 90–150 | Coarse precipitate filtration, gas dispersion, coarse grain material filtration. |
| 2 | 40–90 | Medium & crystalline precipitate filtration, medium filtration & washing of gases. |
| 3 | 15–40 | Fine gas filtration & dispersion, mercury filtration, fine grain material filtration, collection of fine precipitates, analytical work with medium precipitates. |
| 4 | 5–15 | Valves for mercury collection of very fine precipitates. Analytical work with fine precipitates. |
| 5 | 1–2 | Very fine precipitates, analytical work, general bacteria filtration. |
We provide Sintered Filter Round Disc 6.7 mm. to 220 mm., also Sintered Disc with centre hole, Sintered Rod, Square Bar, Triangular Bar, Plate with various dimensions and thickness.
| Dia./mm. | G - 1 or 2 | G - 3 or 4 | G - 5 or 0 | MOQ | |
|---|---|---|---|---|---|
| 10 | Price On Request | Price On Request | Price On Request | EACH | 4 |
| 20 | Price On Request | Price On Request | Price On Request | EACH | 4 |
| 30 | Price On Request | Price On Request | Price On Request | EACH | 4 |
| 45 | Price On Request | Price On Request | Price On Request | EACH | 4 |
| 50 | Price On Request | Price On Request | Price On Request | EACH | 4 |
| 90 | Price On Request | Price On Request | Price On Request | EACH | 2 |
